Baldwin Solid Brass Hinges Bommer Spring Hinges Baldwin Hardware


Soss
Invisible
Hinges

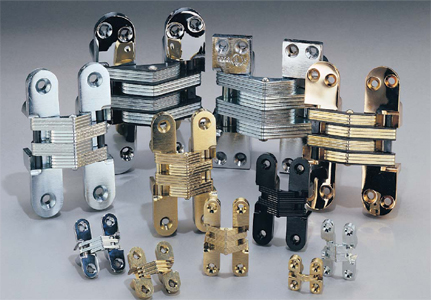

soss concealed hinges
Fully Concealed Hinges
Available in 29 sizes and
7 finishes including Stainless Steel for some sizes
Complete Security - Tamper proof
- no exposed parts when closed
Concealed invisible closers

Finishes listed with an ** are in stock
other finishes are 3 week lead time

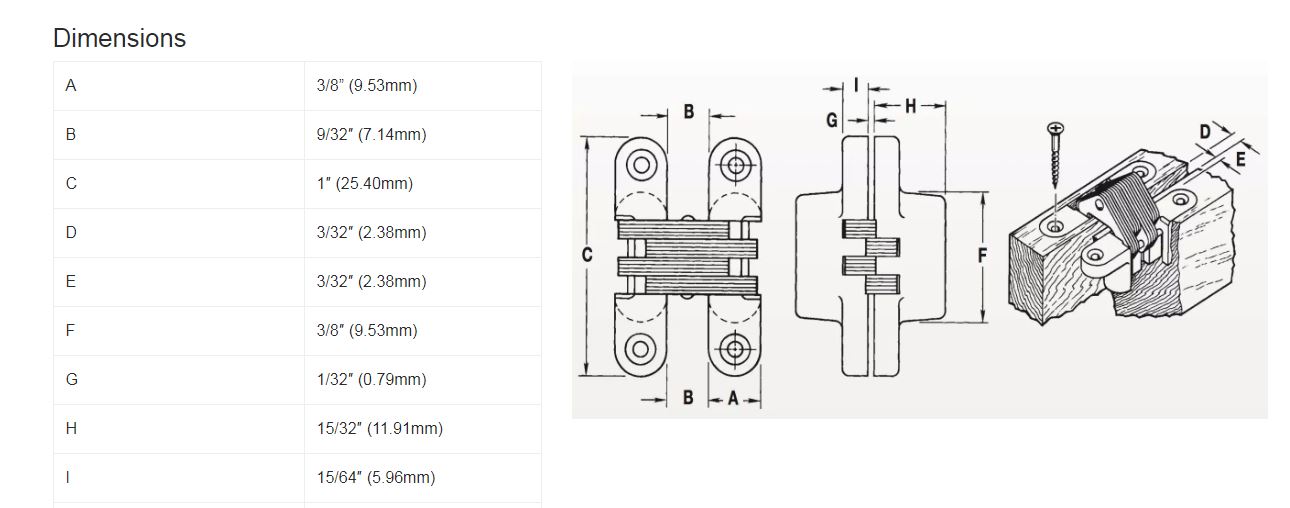

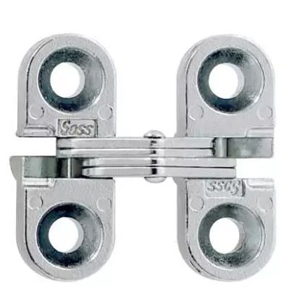

Soss 100
1/2" min wood thickness
1" tall x 3/8" leaf size
Priced per pair

Select Finish

Quantity

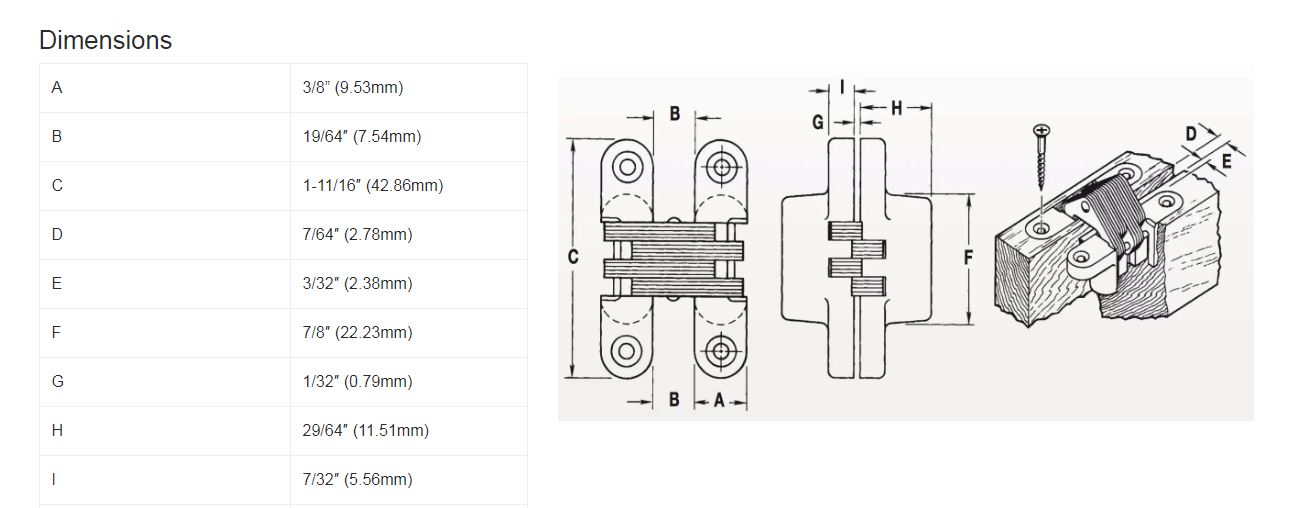

Soss 101
1/2" min wood thickness
1 11/16" tall x 3/8" leaf size
Priced per pair

Select Finish

Quantity

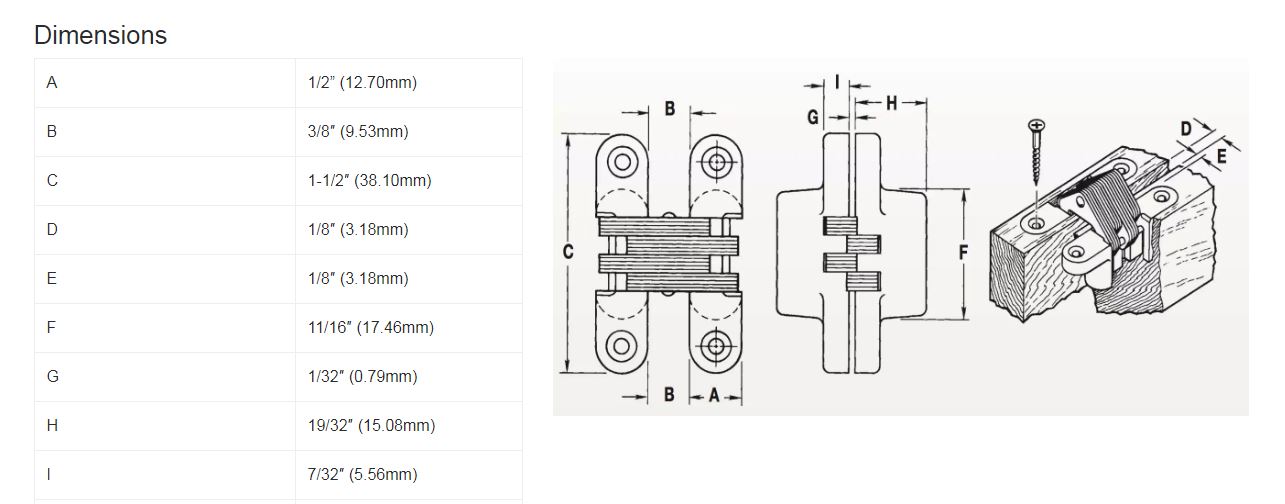

Soss 103
11/16" min wood thickness
1 1/2" tall x 1/2" leaf size
Priced per pair

Select Finish

Quantity

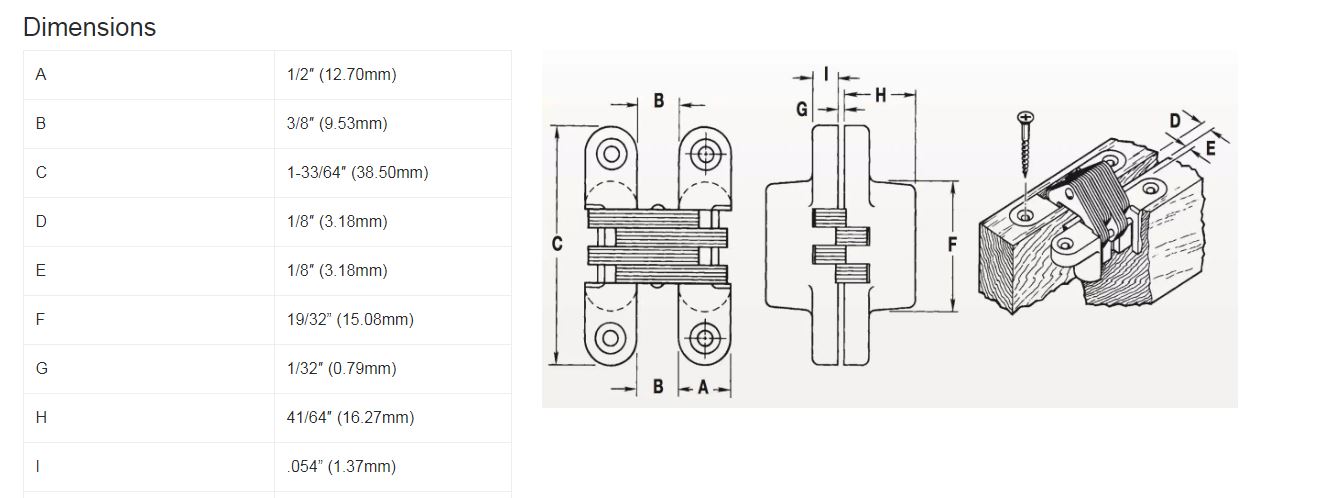

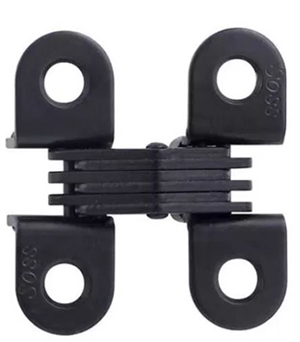

303
11/16" min wood thickness
1 1/2" tall x 1/2" leaf size
.054 flange thickness for
Metal applications
Priced per pair

Select Finish

Quantity

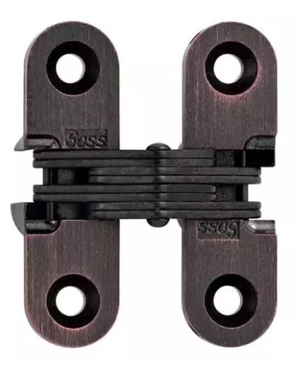

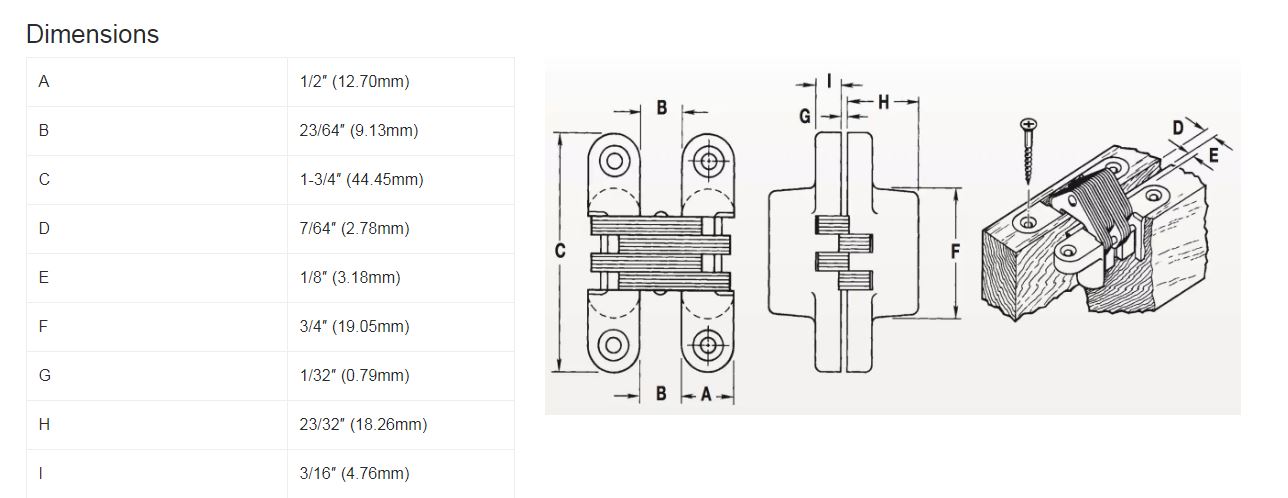

203
3/4" min wood thickness
1 3/4" tall x 1/2" leaf size
Priced per pair

Select Finish

Quantity

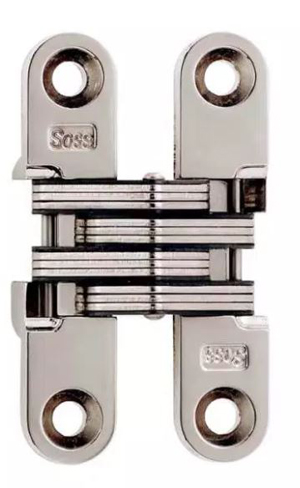

204
3/4" min wood thickness
2 3/8" tall x 5/8" leaf size
Priced per pair

Select Finish

Quantity

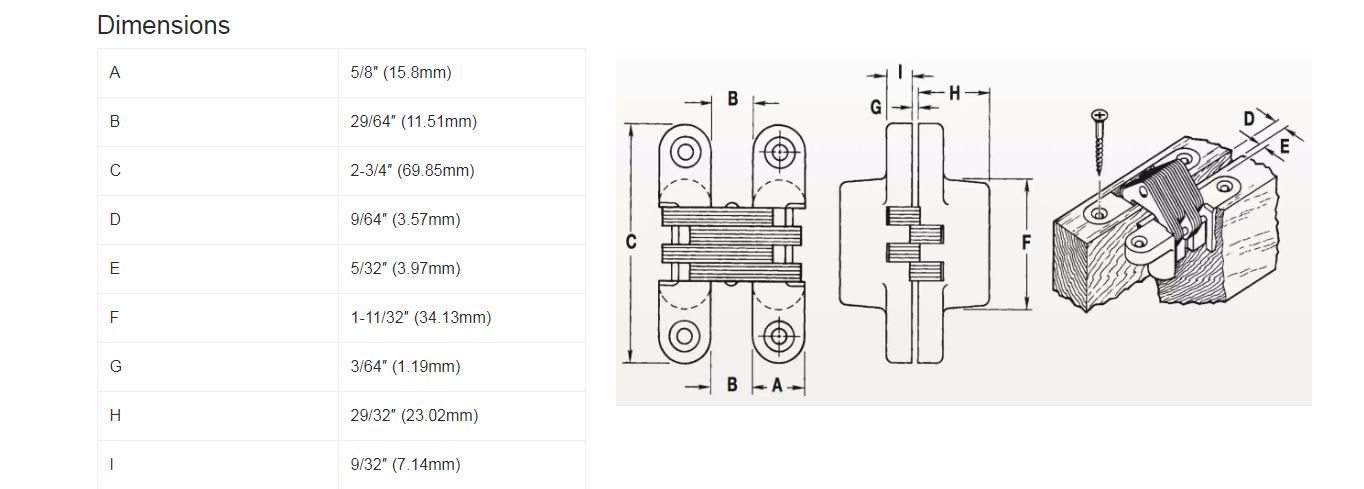

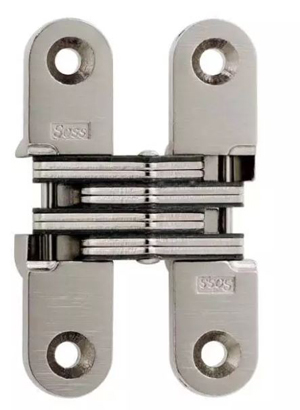

208
1" min wood thickness
2 3/4" tall x 5/8" leaf size
Priced per EACH

Select Finish

Quantity

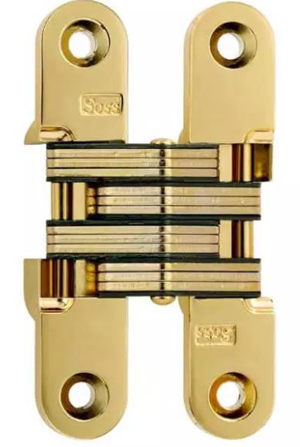

212
1 1/8" min wood thickness
3 3/4" tall x 3/4" leaf size
Priced per EACH

Select Finish

Quantity

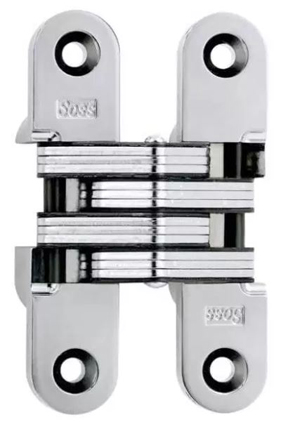

216
1 3/8" min wood thickness
4 5/8" tall x 1" leaf size
Priced per EACH

Select Finish

Quantity

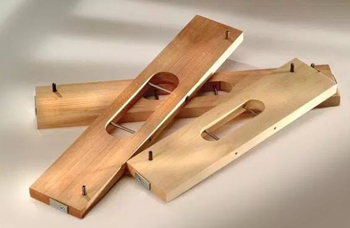

Soss Router Templates
$29.99 each

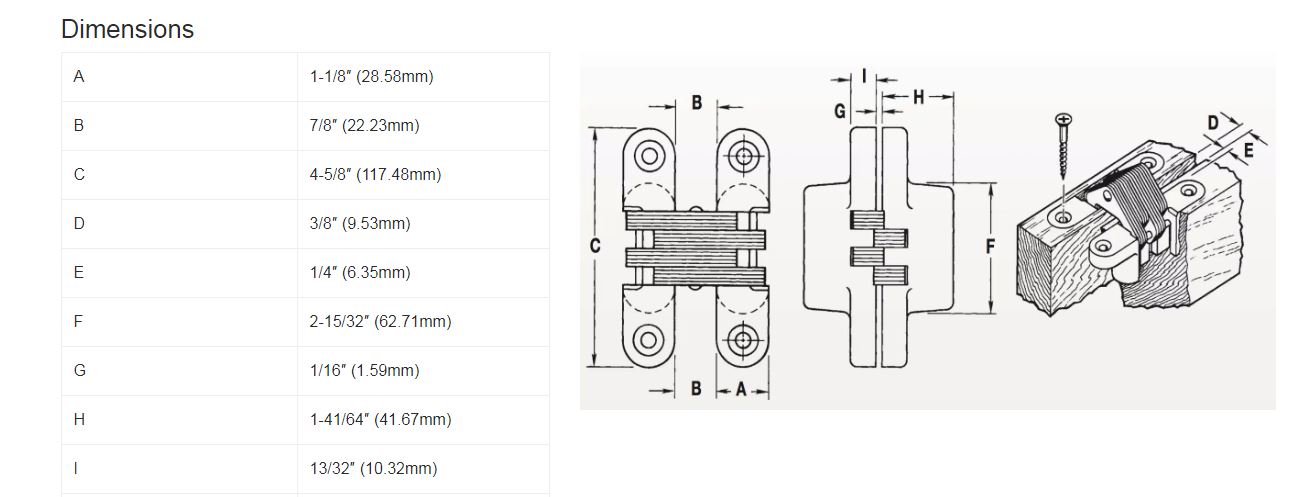

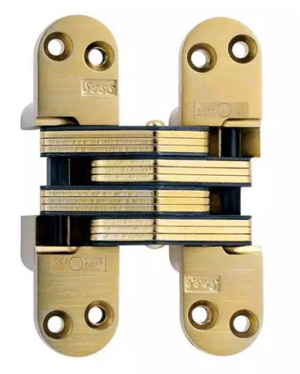

218
1 3/4" min wood thickness
4 5/8" tall x 1 1/8" leaf size
Priced per EACH

Select Finish

Quantity

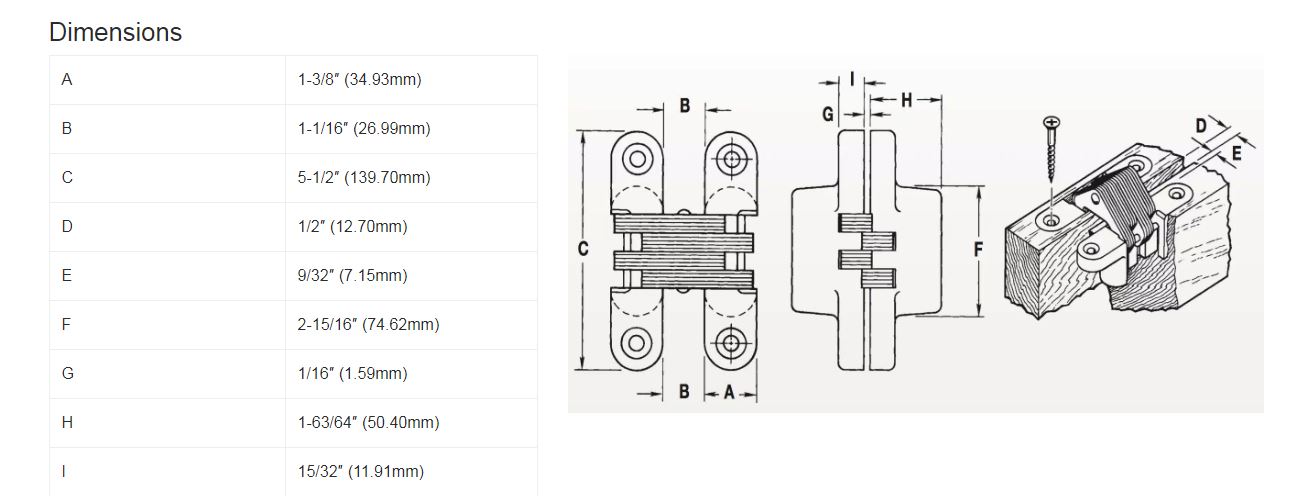

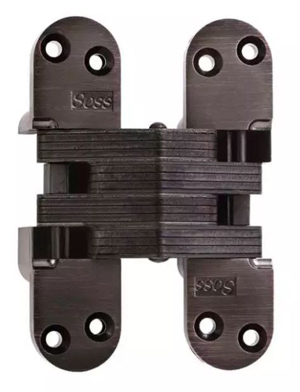

220
2" min wood thickness
5 1/2" tall x 1 3/8" leaf size
Priced per EACH

Select Finish

Quantity

Select Size

QTY

3/4" Router Bushing $13.99
for Soss Temlates
with 42237 lock nut

Quantity



1 hinge per 75 lb of door

Concealed Internal Closers

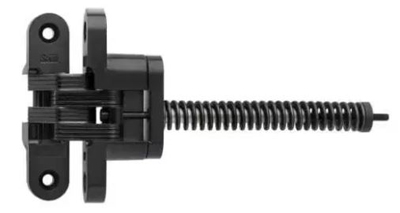

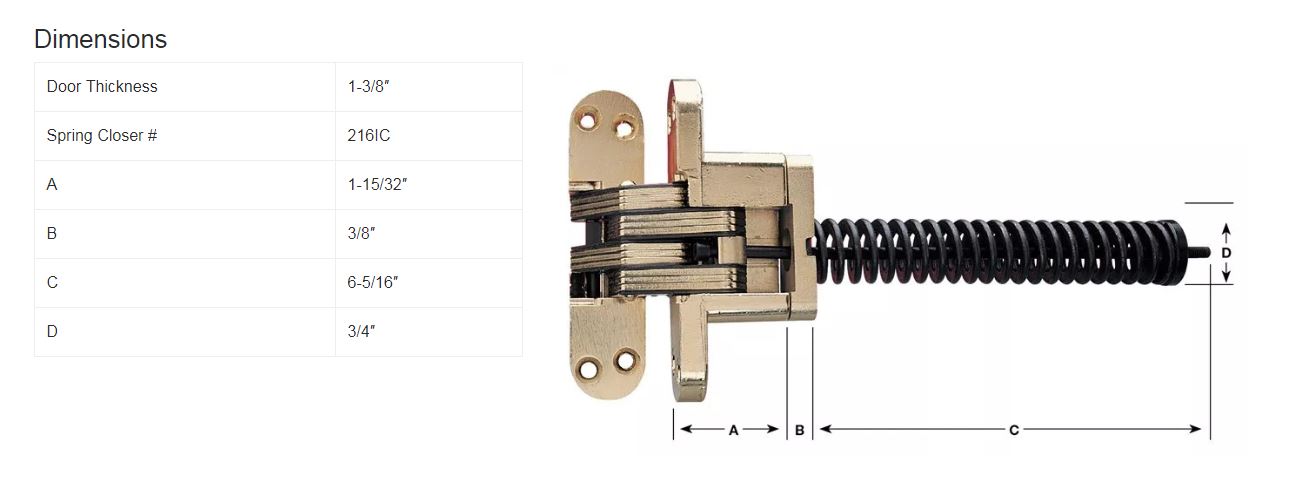

216 IC

1 3/8" min wood thickness
4 5/8" tall x 1 1/8" leaf size
3/4" (D) x 6 1/4" deep spring (C)
Priced per each

Select Finish

Quantity

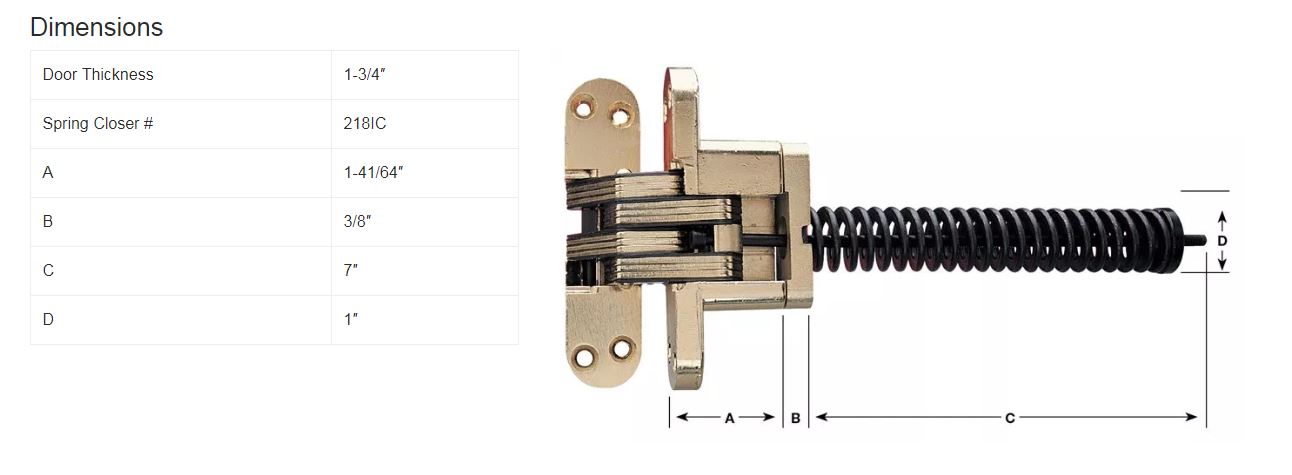

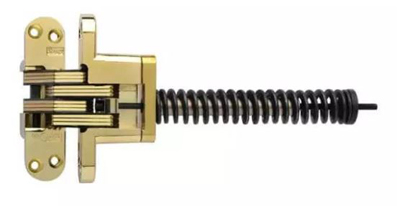

218 IC

1 3/4" min wood thickness
4 5/8" tall x 1 1/8" leaf size
1" (D) x 7" deep spring (C)
Priced per each

Select Finish

Quantity

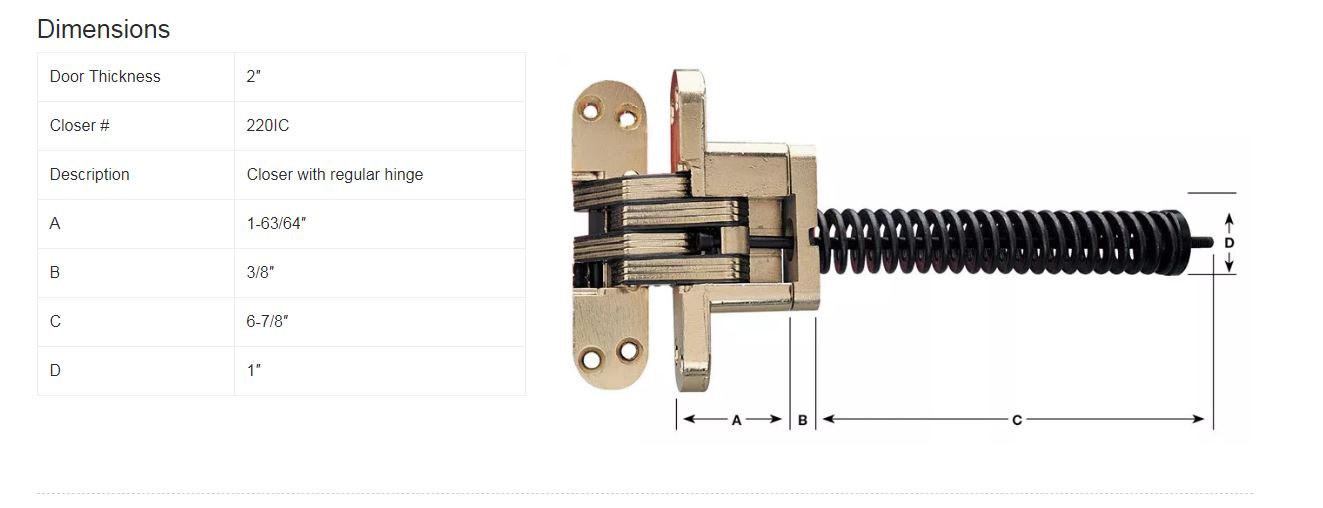

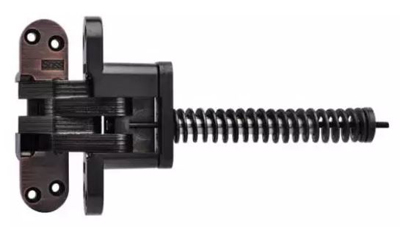

220 IC

2" min wood thickness
4 5/8" tall x 1 1/8" leaf size
1" (D) x 7" deep spring (C)
Priced per each

Select Finish

Quantity

Soss Hinge FAQ

How much weight will each hinge carry?
There is no "load-rating" per hinge for the SOSS Invisible Hinges. We take the width of the door along with the approximate weight to determine how many hinges are required to properly support the door. Go to the section containing the "Nomograph" (Click here) and print this chart to use in determining the correct size and quantity of hinges.

Which hinge is the proper one for my application?
The first thing to consider is the thickness of the door itself, Each hinge has a "minimum" thickness recommendation. With this in mind, consult the nomograph (sizing chart - print only) to determine the number of hinges you will need.  Click here for our Nomograph.

Will the SOSS Invisible Hinge work in a metal application?
Yes! There are many smaller hinges that are designed specifically for metal cabinets. You also can mount the larger hinges in metal doors. We have steel door brackets available to use in mounting The SOSS Invisible Hinges. The nomograph (sizing chart - print only) also lists recommended hinges for metal applications.

Is there a Fire-Rated SOSS Invisible Hinge available?
Yes, SOSS has Fire-Rated Invisible Hinges available for wood and/ or metal doors, the SOSS #418 and #420. Please refer to the section containing information on the Fire-Rated SOSS Invisible Hinges.

Will adding a layer of wood, laminate or mirrors to the face of the door and wall cause any concerns?
Yes, SOSS hinges have been used in many applications in which a mirror or other lamination is used. However, special attention must be paid to the "E" dimension. If too thick a laminate is applied, the door will either not open at all or open only 90 degrees because the SOSS Invisible Hinge does not have much space to clear extra layers. If you do not exceed the "E" dimension when applying material to the face of the door, you should be able to open the door smoothly. Please consult the path and clearance section for further information.

How far will the SOSS Hinge open?
All SOSS Invisible Hinges have the capability to open 180 degrees.

Can the SOSS Invisible Closer Hinge be adjusted to shut the door slowly, so the door does not slam?
The SOSS Invisible Closer is a "spring hinge" with a fully (and easily) adjustable spring. By turning an external screw, the tension on the spring can be adjusted, thus affecting the closing speed of the door. This hinge will not dampen or cushion the closing.

Will a SOSS Invisible Spring Closer Hinge swing both ways?
No. just like the regular hinges, the Closer will open 180 degrees in one direction only.

Can I use the SOSS Invisible Closer with non-SOSS hinges?
No. Because the swing radius of the SOSS Invisible Closer differs from non- SOSS hinges, it works only with SOSS Invisible Hinges. Nor can you combine SOSS hinges with other types of hinges on the same door.
