Bommer Spring Hinges

Call Toll Free
(888) 915-5223

Questions? visit our FAQ page

Home>

Baldwin Hardware

Bommer Spring Hinges

UL Listed for Fire Door Applications
Non-Handed
Steel Material - Now also available in Stainless Steel
Self Lubricating Bearings
Easily adjustable sring tension
2 Spring Hinges recommended per door
Hinges sold by the EACH

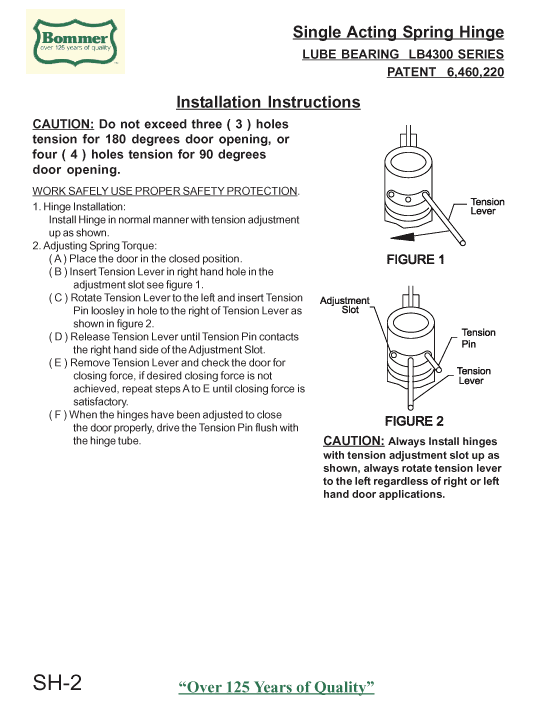

Installation instructions

Available in:
Square Corner
1/4" Radius Corner
5/8" Radius Corner
what is a radius corner?

Polished Brass
Satin Brass
Oil Rubbed Bronze
Satin Nickel

3.5 " Spring Hinges
.96 thickness

Select finish
QTY

4 " Spring Hinges
.96 thickness

Select finish
QTY

4" Spring Hinges
Heavy Duty
1.30 thickness
Select finish
Quantity

4.5 " Spring Hinges
Heavy Duty
1.30 thickness

Square Corner Only -Select finish
QTY

Stainless Steel
Spring Hinges
Heavy Duty
1.30 thickness


QTY
Bommer Floor Pivots
Double acting pivot doors
7801 Spring/Floor Pivot Horizontal Type
Light Duty ___ 35 lb Doors
Iron/Steel Mechanism
Hold open at 85'
installation instructions

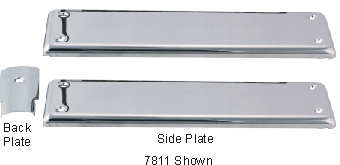

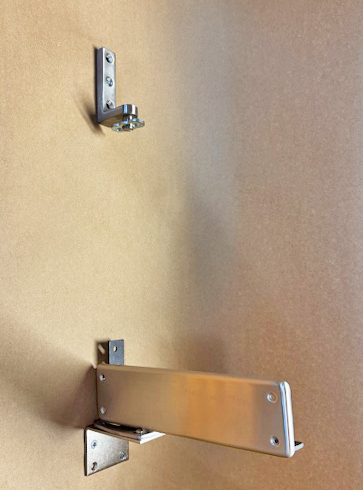

7811 Spring/Floor Pivot Horizontal Type
Medium Duty ___ 90lb Doors
Adjustable Spring Tension
Steel Mechanism
Hold open at 85'

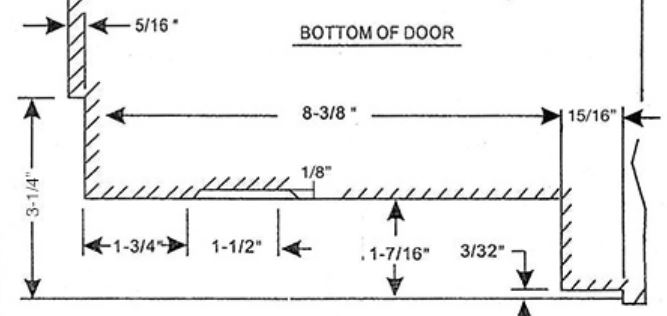

installation instructions
7801 Light Duty
Quantity
7811 Medium Duty
Quantity

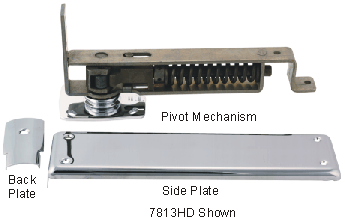

7813HD Spring/Floor Pivot Horizontal Type
Heavy Duty ___ 150lb Doors
Adjustable Spring Tension
Steel Mechanism
Does not have Hold open
installation instructions

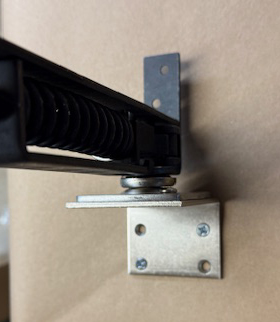

7805 Jamb Bracket
Allows for Easier Jamb mounting
rather than standard floor mount
Works with all units
7813 Heavy Duty
Quantity

Some finishes may have extended lead time of 2-3 weeks
7805 Jamb Bracket
Quantity

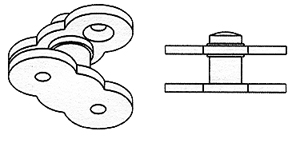

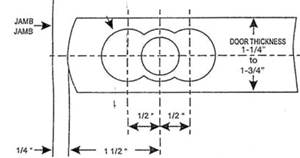

7890 Top Pivot Included with all Pivots

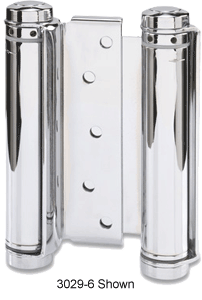

Bommer 3029 Double Acting Spring Hinges
2 Hinges
3 Hinges
Item #
Max Weight
Max. Width
Max Weight
Max. Width
3029-3
35 lbs
24"
39 lbs
32"
3029-4
60 lbs
28"
75 lbs
36"
3029-5
65 lbs
32"
93 lbs
36"
3029-6
75 lbs
32"
107 lbs
36"
3029-7
82 lbs
36"
120 lbs
42"
3029-8
103 lbs
42"
143lbs
48"

Special order 2 - 3 weeks

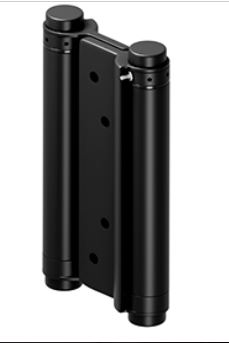

Double Acting Spring Hinges
Size
3029-3"
template
3029-4"
template
3029-5"
template
3029-6"
template
 3029-7"
template
3029-8"
template
Door Thickness 3/4" - 1" 7/8 "- 1 1/4 " 1 1/8 " - 1 1/2 " 1 1/4 " - 1 3/4 " 1 3/8 " -2 " 1 1/2 " - 2 "
Dull Brass $ 38 $ 40 $ 48 $ 50 $ 62 $ 68
Polished Brass $ 42 $ 44 $ 52 $ 56 $ 70 $ 106
Oil rubbed Bronze $ 52 $ 54 $ 64 $ 72 $ 92 $ 135
Brushed Chrome $ 48 $ 52 $ 62 $ 70 $ 82 $ 118


Price per Each

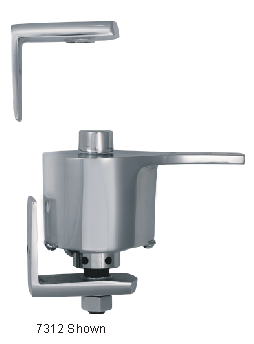

Cafe Door Hinges


7512 -H
 7412 7312 7112
Max
Door Width		 30" 24" 36" 36"
Max
Door Weight		 50 lb. 35 lb. 75 lb. 75 lb
Door Thickness 7/8" -1 5/8" 1 7/8" max 1" - 2 1/2" 1" - 2 1/2"
Base
Material		 Steel Brass Brass Steel
Hold Open Yes No No No
Pivot Type Gravity Gravity Spring
Adjustable		 Spring
Adjustable
Dimesions
Page		 7512 7412 7312 7112
  cafe door hinge cafe door hinges

Select Finish

Quantity
Select Finish

Quantity
Select Finish


Quantity
Select Finish


Quantity

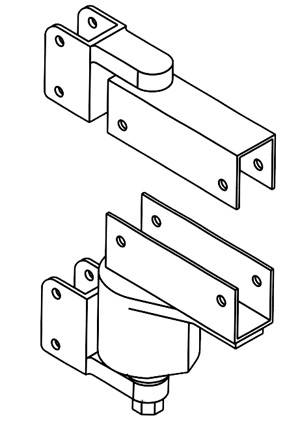

Door Clamp Styles
also Available for Partition Doors

Contact us for more information

cafe door pivot hinge
